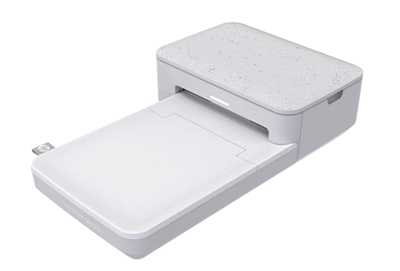

Printer Specifications for HP Sprocket Studio Plus

This document is for HP Sprocket Studio Plus.
Review this document for detailed technical data, such as product numbers, system requirements, connectivity types, physical dimensions, power supply, paper handling, and printing specifications.
HP Sprocket Photo Printers

Printer specifications

Specification
Description
Product numbers
HPISPS4X6
HPISPS4X6EU
HPISPS4X6UK
Dimensions and weight
210 x 135 x 90.5 mm (8.27 x 5.31 x 3.56 in)
1.15 kg (2.54 lbs.)
Connectivity
Bluetooth 5.0
Printer management
HP sprocket app
Power supply
Power source: AC adapter
Input: AC 100 ~ 240 V, 50/60 Hz
Output: DC 24 V, 2.5 A
Printer cartridge
1 cartridge
Cyan, Magenta, Yellow, Overcoat
Power consumption
1.8 W (idle)
Average 19.4 W (based on first print)
Maximum 60 W
Print technology
Dye-sublimation technology
Supported paper
HP Sprocket Studio Plus Photo Paper
100 x 148 mm (4 x 6 in)
Borderless printing
Yes, borderless after removing the two tabs
Support file types
BMP
GIF
JPEG
PNG
TIFF (iOS only)
note:
If you send a non-supported file type, it does not print.
Paper tray capacity
Up to 18 pages
Supported media types
HP Sprocket Studio Plus Ink and Photo Paper
note:
HP Sprocket Studio Plus cartridges and photo paper are sold together and are specially designed to work with your printer.
Print quality
300 dots per inch (dpi)
Mobile system and device requirements
Supported by Android mobile devices with OS 4.4 and later, and iOS 10.0.2 and later
Compatible with Apple iPhone X, iPhone 8, iPhone 8 Plus, iPhone 7, iPhone 7 Plus, iPhone SE, iPhone 6x, iPhone 6s Plus, iPhone 6, iPhone 6 Plus, iPhone 5s, iPhone 5c, iPhone 5, iPad Pro 12.9-inch (2nd generation), iPad Pro 10.5-inch, iPad (5th generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air 2, iPad Air, iPad mini 2, iPad mini 3, iPad mini 4, iPad (4th generation), and iPod touch (6th generation)
Control panel
Power button
Connection light
Error light
Power light
Environmental parameters
Operating humidity: 10% to 85% RH
Storage humidity: 5% to 95% RH
Operating temperature: 5° to 35° C (41° to 95° F)
Storage temperature: -20° to 60° C (-4° to 140° F)
Warranty
One-year limited hardware warranty

Regulatory model number

For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model Number for your product is VCVRA-1802. This regulatory number should not be confused with the marketing name (HP Sprocket Studio) or the individual product numbers.

Ozone production

This product generates no appreciable ozone gas (O3).
